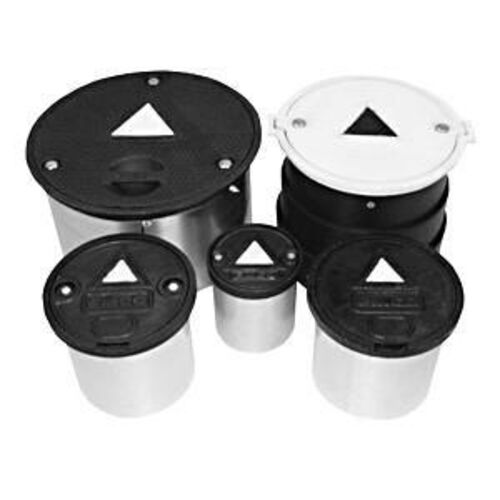

Monitoring Manhole Covers, Round 12″ x 12″ Ductile Lay-In

The Emco Wheaton Monitoring Well Manholes are designed to meet the highest industry standards and provide reliable access to underground monitoring wells. These manholes feature cast-in identification triangles, as recommended by API, ensuring easy identification and compliance with industry guidelines. Additionally, they are built to withstand heavy loads, meeting the AASHTO H20 wheel loading requirements.

One of the standout features of these manholes is the painted ductile iron lid and rim. This not only gives them a sleek and professional appearance but also enhances their durability and resistance to wear and tear. For added protection and customization, you have the option to choose between a galvanized steel or polyethylene skirt.

The bolt-down units are equipped with water-tight lids, ensuring that the contents of the monitoring well remain secure and protected from outside elements. This feature is especially important in preventing contamination and maintaining the integrity of the samples collected.

In terms of specifications, these manholes have a maximum diameter of 13.8 inches and a clear hole ID of 11.2 inches, providing ample space for easy access and maintenance. With an overall height of 12 inches, they are compact yet spacious enough to accommodate various monitoring equipment.

The lid style of these manholes is a convenient lay-in lid, which allows for quick and easy access without the need for complex opening mechanisms. The lid itself is made of black ductile iron, ensuring its durability and longevity.

With a weight of 22.8 lbs., these manholes are sturdy and robust, capable of withstanding heavy loads and harsh environmental conditions.

To learn more about the Emco Wheaton Monitoring Well Manholes and their suitability for your specific needs, please contact our Enivo Design Product sales team. You can reach us by phone at 866-514-3684 or through the chat widget located at the bottom of the screen. Our knowledgeable team is ready to assist you and provide any additional information you may require.
